Pneumatic/Hydraulic

Components for pneumatic and hydraulic circuits. These objects are part of the standard Dia toolbox.

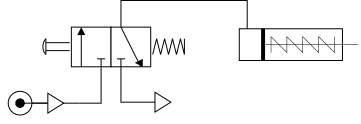

Example

Pneumatic/Hydraulic

Download

Installation

These objects are part of the standard Dia toolbox. To use them simply install Dia: Dia

Advertisement







Object list

Double-effect jack
Normally-in simple-effect jack
Normally-out simple-effect jack
Generic pressure source
Hydraulic pressure source
Pneumatic pressure source
Air exhaust orifice
2/2 distributor
3/2 distributor
4/2 distributor
5/2 distributor
Muscular command
Push-button command
Mechanical command by tappet
Mechanical command by spring
Electric command (single coil)
Electric command (double coil)
Indirect command by hydraulic driver
Indirect command by pneumatic driver
Connection point
